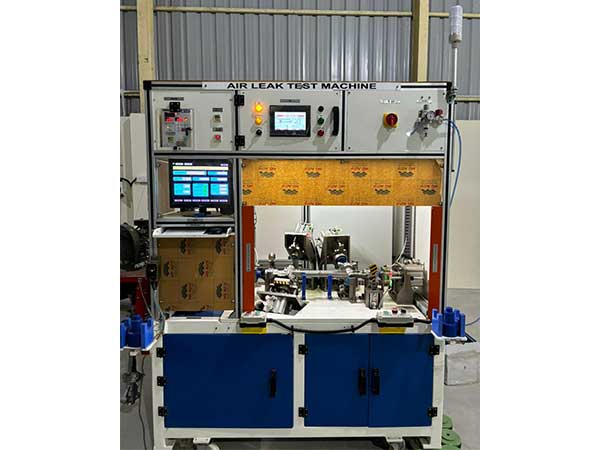

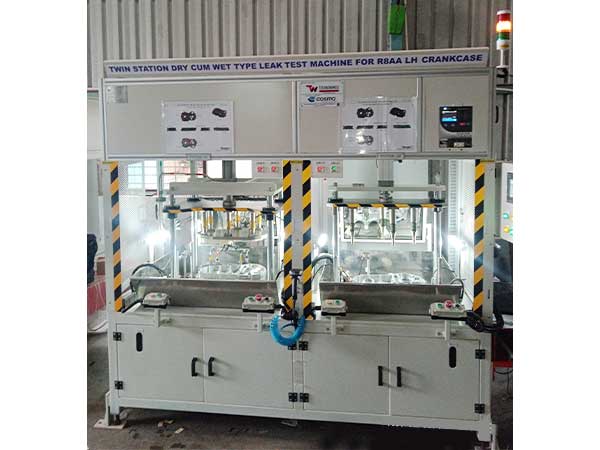

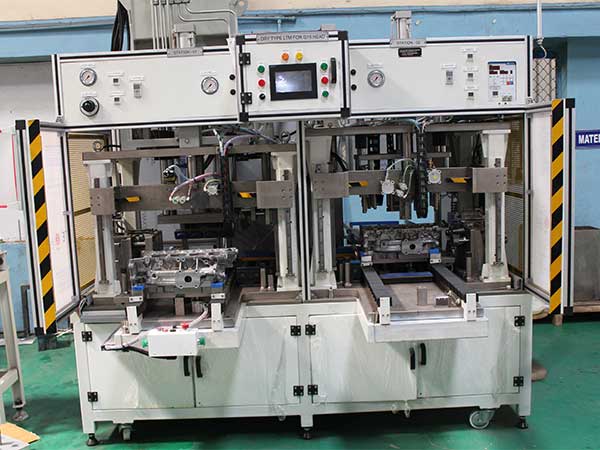

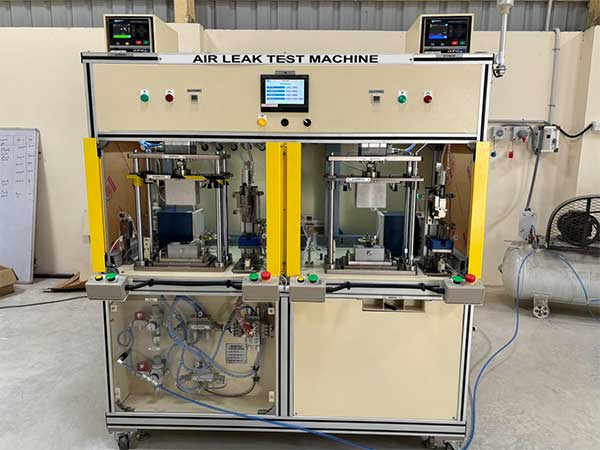

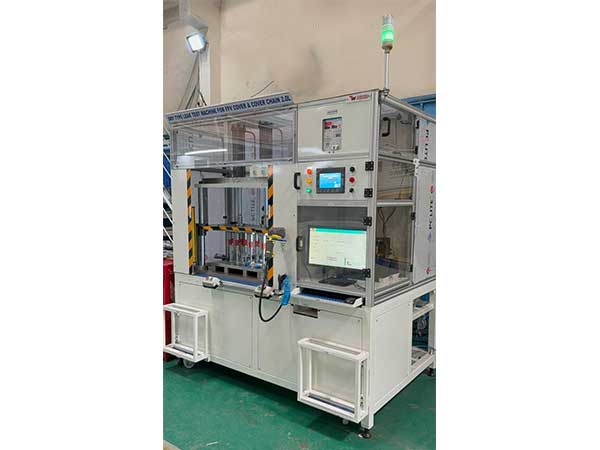

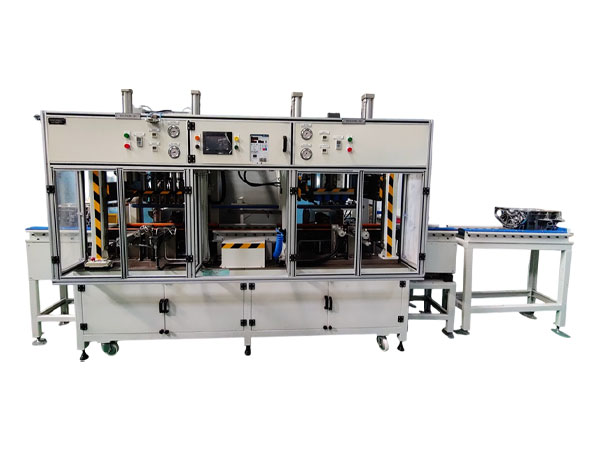

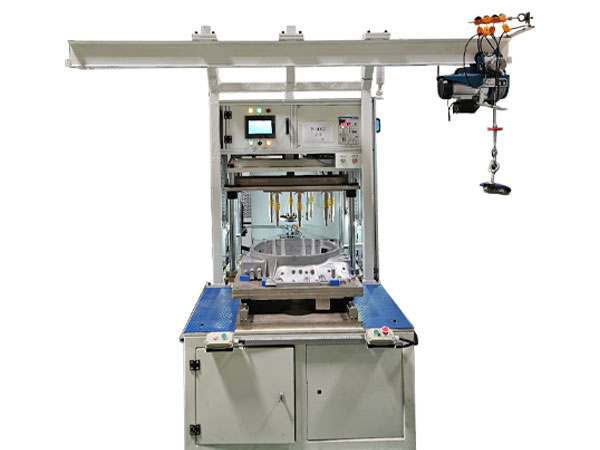

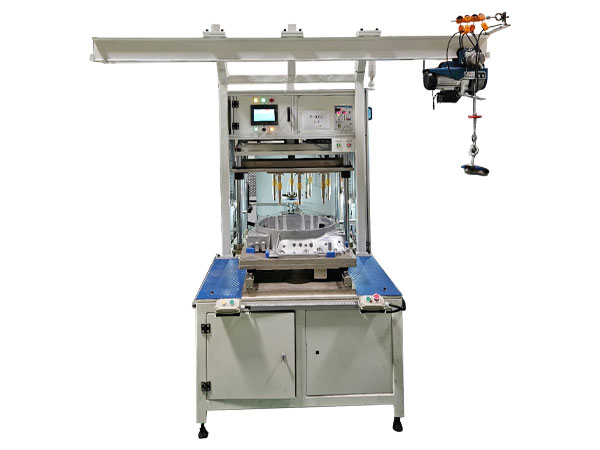

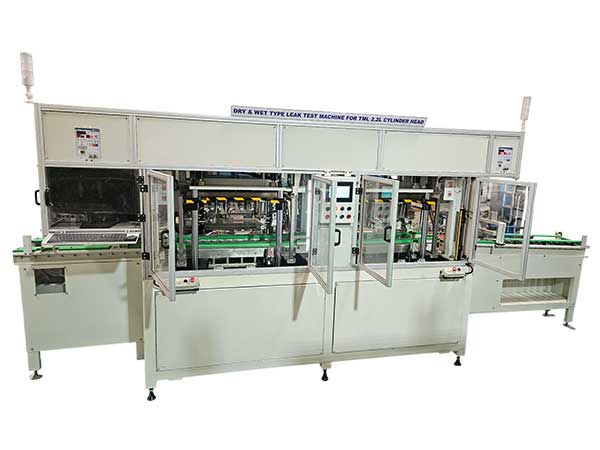

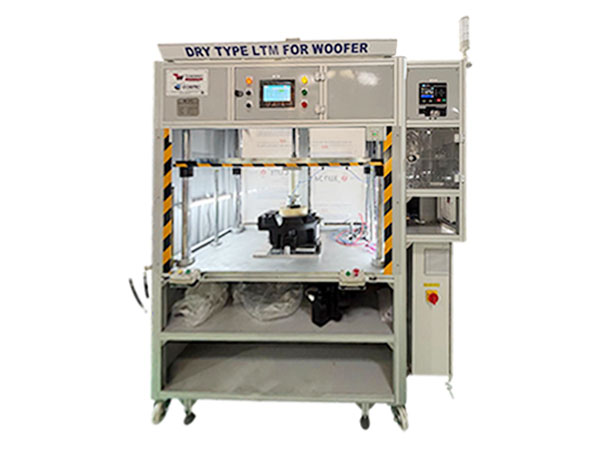

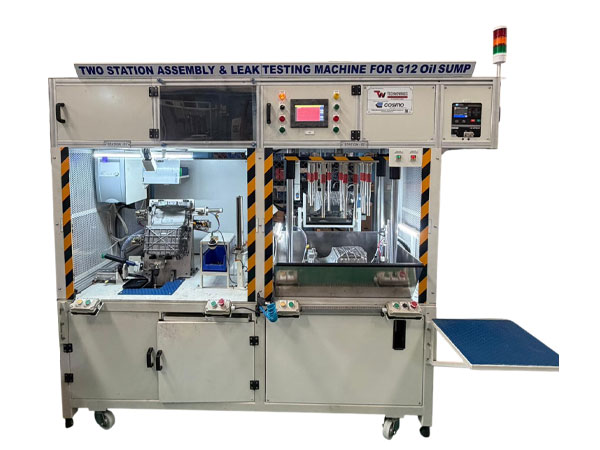

Technowings Industry Design & Manufacture Air Leak Test Machines with dry as well as dry & water immersion method to check the porosity of Cylinder Block, Cylinder Head, Gear Housing, Clutch Housing, Oil coolers, high pressure gas cylinder, intake/exhaust manifold, engine assembly etc. with high pressure air leak test through microprocessor based pressure drop method with highest resolution to meet international standards.

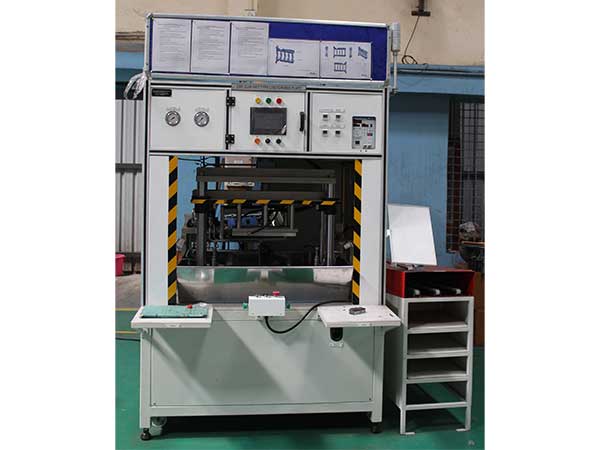

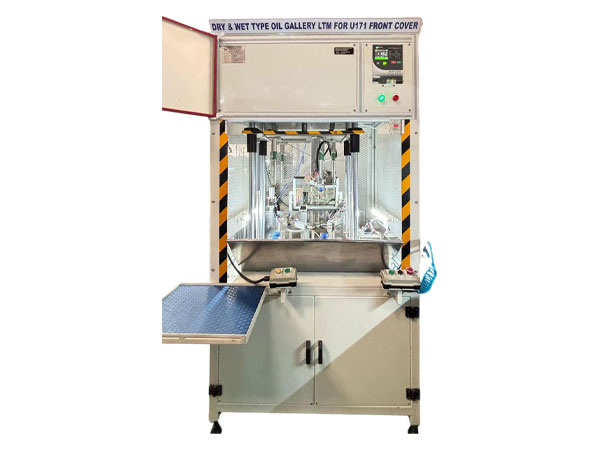

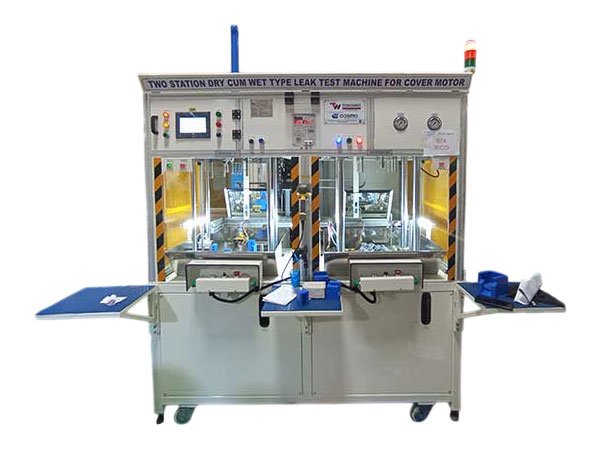

Water dip machine has built in facility of water immersion for further analysis of leakage area which can be observed In illuminated water tank.

Leak Test Machines
Leak Test Machines

The procedure is to load the component on fixture, clamp and plug the component in position. Air will be pressurized in to the component till the pressure reaches a preset value, stabilise the air inside the component and checked for leakage through a pressure drop/flow sensor and the result is displayed on Leak Testing Instrument. If the component is rejected, it is immersed into the emulsion tank where the area of leakage is observed visually. In case of OK component punching will be done & depressurization, de-plugging followed by de-clamping takes place.
